Fleet management 4G GPS tracker with anti-theft/ driver/student ID identification/tracking platform

  • 1 - 9 Sets
    $86.00
  • 10 - 99 Sets
    $84.00
  • >=100 Sets
    $82.00
Color:
Black
Lead Time:
Quantity(Sets) 1 - 100 >100
Est. Time(days) 1 Negotiable
Customization:
Customized logo (Min. Order: 100 Sets)
Customized packaging (Min. Order: 100 Sets)

More

Graphic customization (Min. Order: 100 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Topshine
Model Number:
VT1000 4G
Type:
GPS tracker
Warranty:
24 months
Use:
Automotive
Item Size:
130mm*80mm*28mm
Weight:
180g
Backup Battery:
3.7V/850mAh
Operating temperature:
-20° to 75° C
Frequency:
GSM 900/1800/1900Mhz or GSM 850/900/1800/1900Mhz
GPS Chipset:
GPS SIRF-Star 3
GPS Sensitivity:
-159DBm
Position Accuracy:
10 meters, 2D RMS
GSM Module:
Quetel M35
Voltage:
12V-90V
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Printed box: 0.8kg/unit;25unit/carton
Port
Guanghzou
Lead Time :
Quantity(Sets) 1 - 100 >100
Est. Time(days) 1 To be negotiated

4G GPS tracker for  Fleet management  with anti-theft and driver(student) ID identification



    1



3



2



Maoming Topshine Electronic Technology Co., Ltd. specializes in R&D innovation manufacturing superior GPS products in terms of GPS Personal Tracker, GPS Vehicle Tracker, GPS Tracking System and Integrated GPS Tracking Solutions.





  Brief description

VT1000 is a most advanced and high-cost effective GPS tracker, it is equipped with ARM9 high speedy microprocessor; supporting camera (location &driving information log on picture). Bidirectional communication; support max 64GB SD card for storing data and pictures; 4 A/D connectors for multi fuel sensor monitoring; support unique active RFID for automatic anti-theft and driver identification; support OTA (updating online) for upgrading new firmware by GPRS if needed; with harsh braking & acceleration alarm and accident alarm; and many useful functions and extensibility for fleet management and vehicle security purpose.



  Application

  • Vehicle Real Time Tracking
  • Car Security/Anti-Hijack
  • Fleet Management



  Features of VT1000

* Two way location (GPS + GSM mode)

* Tracking by SMS/GPRS (TCP/UDP)

* Tracking by time/distance interval

* OTA Function

* Real time tracking via the web-platform

* Get position location via call/SMS

* Engine on/off detection

* Built-in backup 850 mAh battery

* Remote Engine cut off to stop the car in safe condition

* ARM9 high speed microcontroller

* Wiretapping/remote listening

* Get location physical name via SMS & from the web-platform

* Google Map link for location via SMS, it shows your location on map via mobile phone.

* Mileage calculation with longitude and latitude via SMS; view mileage data via GPS web-based tracking centre system

* Door open/close status detecting/ control

* Built-in motion sensor for power & GPRS flow saving mode (sleep mode)

* Built-in 4MB memory & position logging capacity up to 26,000+ waypoints even no GPRS signal

* Limit the vehicle speed (Optional)

* Two way communication (Listen & Speak, need speaker support) (optional)

* Support 4G SD card store data and pictures (optional)

* Photo with location & driving information log function (need camera support) (optional)

* Can equip with RFID kit for driver identification and auto Arm/Disarm functions (movement/towed alert, ignition alert, auto cut off engine etc) (need RFID support) (optional)

* Analog input for Temperature & Fuel sensor detecting/monitoring, support max 4 fuel sensor manage (optional)





4g vt1000.jpg



  Specifications

Quad-band GSM global network

12V ~ 90V power supply, suitable for all kind of vehicles, heavy duty, trucks and so on

Fully new and industrial module

High-speed Microcontroller

High gain antenna more sensitive



Items

Specifications

Dimension

110*80*30mm

Weight

180g

Input voltage

DC 12V~90V/1.5A

Back-up Battery

850mAh

Velocity

515 meters/second (1000 knots) max

Operating Temperature

-20°C~75°C

Humidity

5%~95% Non-condensing

Altitude Limit

18,000 meters (60,000 feet) max

LED

2 LED lights to show GPS, GSM status

Button

1 SOS and 1 power on/off

Microphone

Default

Cold start

42sec., average

Hot Start

1 sec., average

2G GSM Frequency

GSM 850/900/1800/1900MHz or GSM 900/1800/1900 MHz

3G GSM Frequency

Version A: UMTS/HSDPA 850/1900MHz

Version E: UMTS/HSDPA 900/2100MHz

Version T: UMTS/HSDPA 850/2100MHz

GPS Chip

U-blox 7

GPS Sensitivity

-158dB

Positioning Accuracy

10meters, 2D RMS

GPS Frequency

L1, 1575.42 MHz

C/A Code

1.023 MHz chip rate

Channels

20 channel all-in-view tracking

Velocity Accuracy

0.1m/s

Time Accuracy

1 us synchronized to GPS time

Default datum

WGS-84

Reacquisition

0.1 sec., average

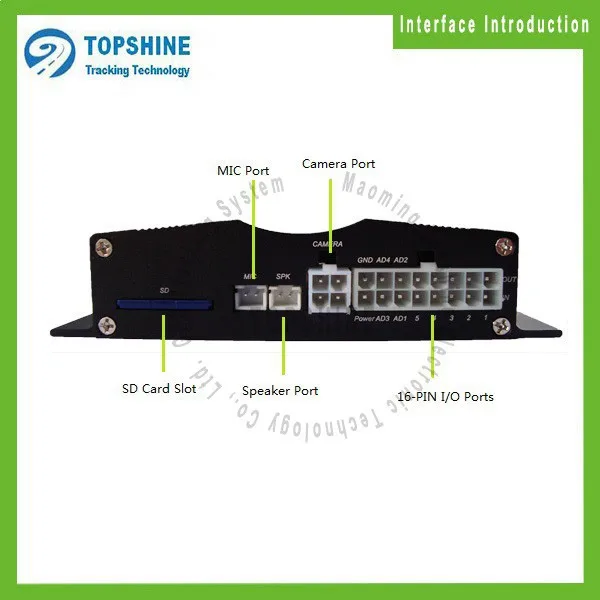

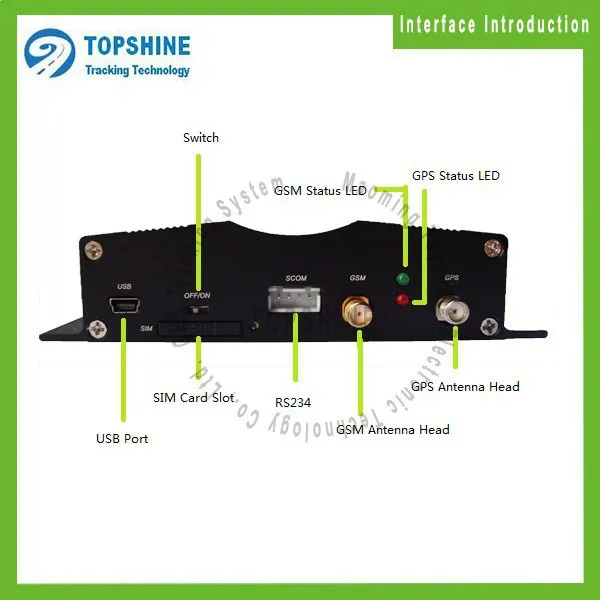

I/O

5 Input 5 Output  1 Camera Port

4 Analog Input  1 RS232 Port    1 USB Port 1MIC&Speaker Port 1 SD Card Slot

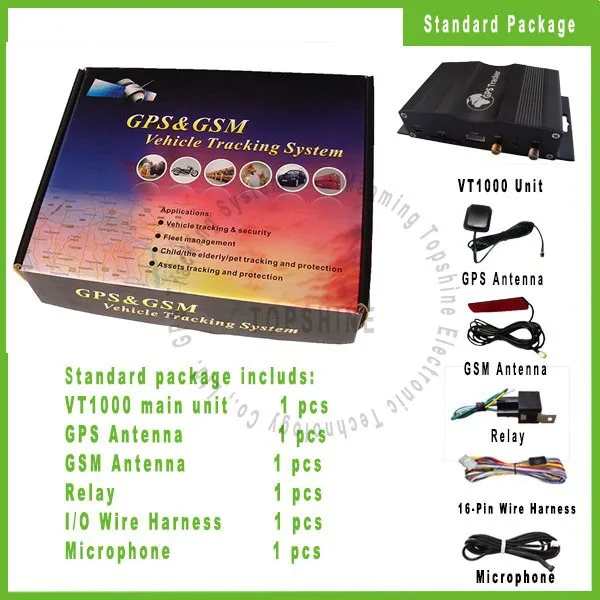

  Standard package

package

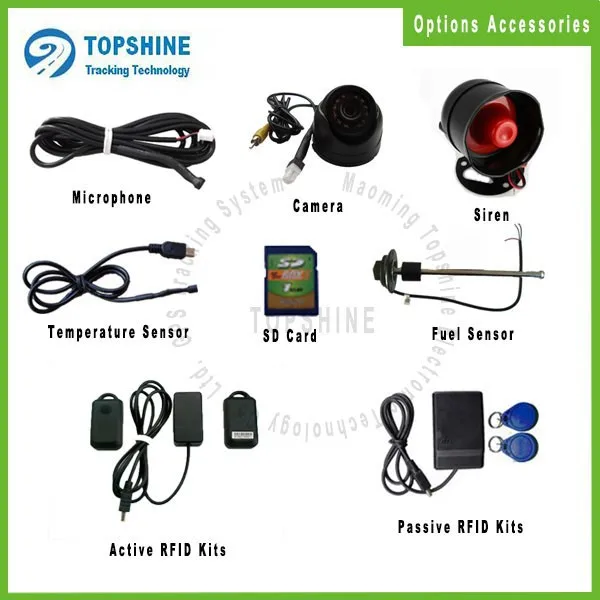

  Optional accessory

The different accessory is with a different function. If you have other ideas, please feel free to tell us, we can customize for you.

1000

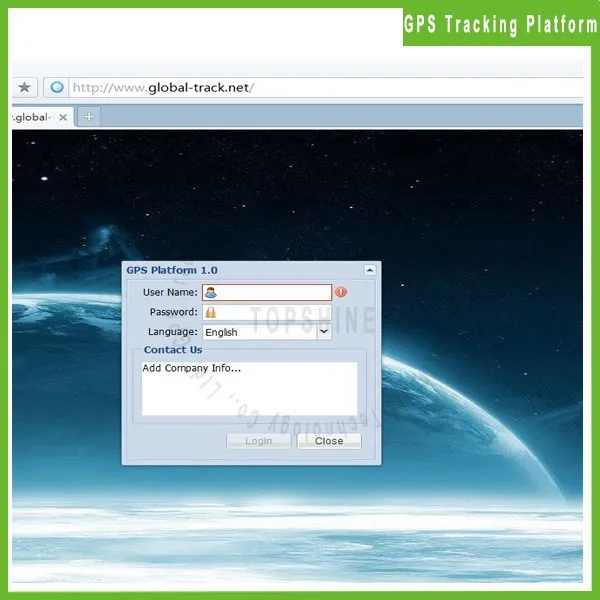

  Software management

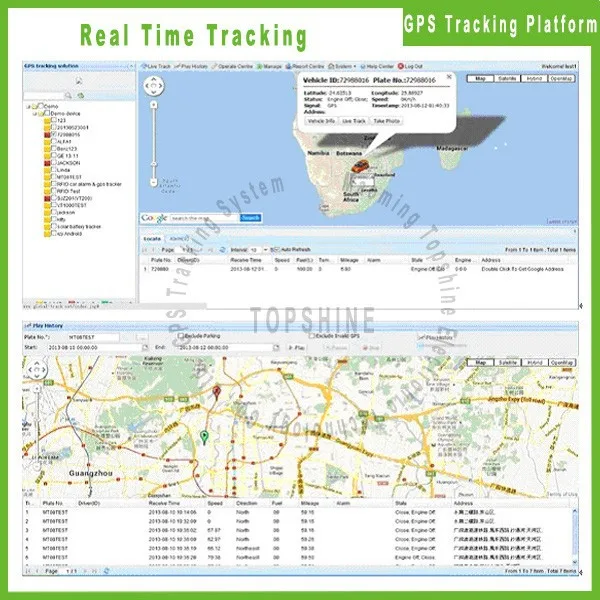

GPRS 01 tracking platform

We provide a free web-based tracking platform in our own server during a lifetime! Please contact us for the demo account.

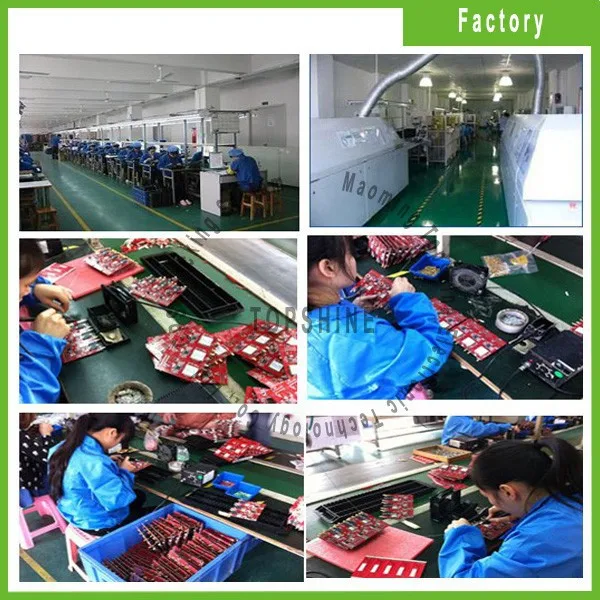

  Our factory

We are real Chinese leading manufacturer in this field, have more than ten years of development experience. We have our own professional engineers who can offer our esteemed customer quick technical support.



  Why choose TOPSHINE??





>> Professional manufacturer, less intermediate links, then more competitive price and quicker service than a trading company.

>> 13-year experience in GPS tracking system and car alarm security system, strict ISO9001 quality control and rigorous tests before shipment to ensures our superior and proven reliable quality. Tests include high and low-temperature aging test, vibration test, noise tests, high and low voltage change tolerance test, etc.

>> Wide product range for your choice.

>> Top R&D team for GPRS, GSM, system integration etc. , make it possible for us to supply professional solutions, quick support and meet with your special and complicated requirements in a short time.

>> Can pass CCC, CE, FCC, and UL approvals if required.

>> Easy to use Free online worldwide tracking platform on our server, you can track and monitor live data or view historical data totally free on our web server, without any monthly charges!

>> 90% turnover for exporting, with experience for global markets.

>> Customization/OEM/ODM/Buyer's labeling service is welcomed!







Welcome to inquiry now!



Contact: Shelly

Skype: topshine.sales3
